Recovery and Extraction of Indium Metal from ITO Target Waste Materials

Introduction to Indium and ITO Target Waste

Applications and Importance of Indium

Indium, a rare and versatile metal, plays a crucial role in various high-tech industries due to its unique properties. Its primary applications are found in the semiconductor industry, where it is used to create high-performance transistors and integrated circuits. The metal's exceptional electrical conductivity and malleability make it ideal for these purposes.

In addition to semiconductors, indium is extensively used in the production of transparent conductive coatings, most notably in indium tin oxide (ITO) coatings. These coatings are essential for touchscreens, solar cells, and flat-panel displays, enhancing their transparency and conductivity. The demand for ITO coatings is particularly high in the electronics sector, driving the need for reliable indium supply.

Indium's applications extend beyond electronics. It is also utilized in the manufacture of fluorescent materials, which are vital for various lighting and display technologies. Furthermore, indium finds its place in metal-organic compounds, contributing to advanced materials science and chemical research.

The strategic importance of indium is underscored by its scarcity and the critical role it plays in modern technology. As the global demand for electronic devices continues to surge, the efficient recovery and recycling of indium from waste materials, such as ITO target waste, become increasingly vital. This not only ensures a sustainable supply of indium but also mitigates environmental impacts associated with its extraction and disposal.

Sources and Abundance of Indium

Indium is predominantly sourced from the smelting processes of heavy metals, including zinc, lead, copper, and tin. This extraction method is crucial due to the metal's rarity in its natural state. The abundance of indium in the Earth's crust is exceedingly low, estimated at a mere 0.11 μg/g. This scarcity underscores the importance of efficient recovery techniques to meet the growing demand for indium, particularly in high-tech industries such as semiconductors and transparent conductive coatings.

The primary industrial sources of indium are zinc ores, where it is often found as a by-product. During the extraction of these base metals, indium is typically concentrated in the smelter residues and flue dusts. These residues are then further processed to recover the indium, a process that requires significant energy and resources. Given its low natural abundance, the efficient recovery of indium from these secondary sources is essential for maintaining a sustainable supply chain.

In addition to its low crustal abundance, indium's dispersion in the environment further complicates its extraction. Unlike more abundant metals that can be mined from concentrated ore bodies, indium is often scattered in trace amounts across various mineral deposits. This necessitates advanced extraction technologies to isolate and purify the metal from these complex matrices. The challenge of indium recovery is thus not only a matter of quantity but also of technological sophistication and economic feasibility.

The scarcity of indium, combined with its critical role in modern technology, highlights the need for ongoing research into more efficient and environmentally friendly recovery methods. As the demand for indium continues to rise, particularly in the production of ITO (Indium Tin Oxide) targets used in electronic displays, the development of sustainable extraction processes becomes increasingly important. This not only ensures a reliable supply of indium but also mitigates the environmental impact associated with its extraction and processing.

ITO Target Waste as a Source of Indium

ITO sputtering targets are a major consumer of indium, accounting for approximately 50% of its global demand. This substantial consumption underscores the critical role of ITO targets in various technological applications, particularly in the production of transparent conductive coatings for electronic devices. However, the utilization rate of ITO targets is notably low, often less than 30%, leaving a significant portion of indium unrecovered and embedded within the waste generated from these targets.

The recovery of indium from ITO target waste is not just economically viable but also environmentally imperative. Given the scarcity of indium in the Earth's crust, estimated at a mere 0.11 μg/g, the recycling of indium from industrial waste becomes a crucial strategy for sustaining its supply. This practice not only mitigates the depletion of natural resources but also reduces the environmental footprint associated with primary mining and refining processes.

Moreover, the technological advancements in recovery methods, such as chemical purification and electrolytic refining, have enhanced the efficiency and purity of indium extracted from ITO waste. These methods enable the extraction of high-purity indium, typically achieving purities of up to 99.995%, which is essential for its use in advanced electronic applications. The process involves dissolving the ITO waste in hydrochloric acid, followed by steps such as replacement with zinc powder and electrolytic refining, ensuring a comprehensive and efficient recovery process.

In summary, ITO target waste represents a significant and underutilized reservoir of indium, offering both economic and environmental benefits through its recovery and recycling. As the demand for indium continues to rise, particularly in the electronics industry, the efficient extraction and reuse of indium from ITO waste will play an increasingly vital role in meeting this demand sustainably.

Methods for Indium Recovery

Chemical Purification Techniques

Chemical purification techniques are essential for the recovery of high-purity indium from ITO target waste. These methods include vacuum distillation, electrolytic refining, directional coagulation, regional melting, and molten salt electrolytic refining. Each technique plays a unique role in the purification process, ensuring that the indium extracted meets the stringent purity requirements for industrial applications.

Vacuum distillation is particularly effective for removing volatile impurities, while electrolytic refining allows for the selective deposition of indium onto an electrode, thereby achieving high purity levels. Directional coagulation and regional melting are used to segregate indium from other elements based on their different melting points and solubility characteristics. Lastly, molten salt electrolytic refining involves the use of molten salts to further purify the indium, ensuring that it is free from any residual contaminants.

These chemical purification processes are meticulously designed to address the specific challenges associated with indium recovery from ITO waste, ensuring that the final product is of the highest purity and suitable for a wide range of applications in the electronics industry.

Physical Purification Techniques

Physical purification techniques play a crucial role in the recovery of high-purity indium from ITO target waste. These methods are essential for separating indium from other elements and impurities present in the waste materials. The primary physical purification techniques include solvent extraction, ion exchange, and liquid membrane extraction.

• Solvent Extraction: This method involves the use of selective solvents to extract indium from a solution. The solvent selectively binds to indium ions, allowing them to be separated from other elements. This technique is particularly effective in achieving high levels of purity.

• Ion Exchange: Ion exchange involves passing the indium-containing solution through a resin bed that selectively captures indium ions. Once the resin is saturated with indium, it is eluted with a suitable solvent to release the indium ions, which can then be collected and purified further.

• Liquid Membrane Extraction: This technique uses a thin, immiscible liquid membrane to separate indium ions from the solution. The membrane allows selective passage of indium ions, effectively separating them from other elements and impurities.

Each of these methods has its unique advantages and is chosen based on the specific requirements of the purification process. By combining these physical purification techniques with chemical and electrolytic methods, it is possible to achieve high-purity indium recovery from ITO target waste.

Processes for High-Purity Indium Recovery

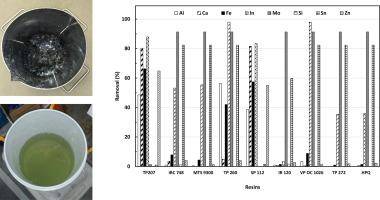

Acid Dissolution and Filtration

The process of recovering indium from ITO target waste begins with the dissolution of the waste material in hydrochloric acid. This step is crucial as it facilitates the separation of indium from the other components present in the ITO target. The dissolution process typically involves heating the mixture to optimize the reaction rate and ensure complete dissolution of the indium-containing compounds.

Once the dissolution is complete, the solution is subjected to filtration. This step is essential to separate the indium-rich solution from the insoluble residue, which may contain other metals and non-metallic impurities. The filtration process can be enhanced by using specialized filters designed to capture fine particles efficiently, thereby ensuring a high-purity indium solution.

The resulting indium-containing solution is then ready for the next stage of the recovery process, which involves the replacement of indium with zinc powder to form sponge indium. This intermediate product is subsequently purified through alkaline melting and electrolytic refining to achieve the desired high-purity indium.

In summary, the acid dissolution and filtration steps are foundational to the indium recovery process, effectively isolating the valuable indium from the waste material and setting the stage for further purification.

Replacement and Purification

The process of recovering indium from ITO target waste involves several critical steps, notably the replacement of indium from the solution and subsequent purification. Zinc powder is employed to facilitate the replacement process, effectively displacing indium ions from the solution. This displacement results in the formation of sponge indium, a precursor material that is rich in indium but still contains impurities.

To achieve high-purity indium, the sponge indium undergoes a purification process known as alkaline melting. During this stage, the sponge indium is subjected to high temperatures in an alkaline environment, which helps to separate and remove residual impurities. The alkaline conditions are crucial as they aid in the selective oxidation and volatilization of impurities, leaving behind a more concentrated and pure indium product.

The combination of zinc powder replacement and alkaline melting is essential for the efficient recovery of high-purity indium from ITO target waste. This multi-step process ensures that the final product meets the stringent purity requirements demanded by industries such as electronics and semiconductors.

Electrolytic Refining

The electrolytic refining process plays a pivotal role in transforming crude indium into a high-purity metal, typically reaching purities of around 99.995%. This method is crucial for ensuring that the recovered indium meets the stringent standards required for its various industrial applications, such as in semiconductors and transparent conductive coatings. The electrolytic refining process not only enhances the purity of the metal but also ensures a high recovery rate, exceeding 93%.

During electrolytic refining, the crude indium is subjected to an electric current, which facilitates the separation of impurities from the indium ions. This process is carried out in a controlled environment, often using specialized electrolytic cells designed to maximize efficiency and minimize contamination. The result is a refined indium product that is free from most common impurities, making it suitable for high-tech applications where purity is paramount.

The electrolytic refining process is a key step in the overall recovery and purification chain of indium from ITO target waste. It follows the initial stages of acid dissolution and filtration, which prepare the indium-containing solution for further purification. By the time the indium reaches the electrolytic refining stage, it has already undergone several purification steps, each contributing to the overall goal of producing a high-purity metal.

The success of the electrolytic refining process is measured not only by the purity of the final product but also by the recovery rate, which is a critical economic factor. A high recovery rate ensures that the majority of the indium present in the initial waste material is successfully extracted and refined, minimizing losses and maximizing the yield. This dual focus on purity and recovery underscores the importance of electrolytic refining in the indium recovery process.

Experimental Setup and Analysis

Raw Materials and Equipment

The recovery process for high-purity indium from ITO target waste relies on a carefully selected array of raw materials and specialized equipment. The primary raw materials include ITO target waste, hydrochloric acid, liquid alkali, caustic soda, and zinc powder. Each of these materials plays a crucial role in the extraction and purification stages.

The equipment used in this process is equally critical, ensuring efficient and controlled reactions. Key pieces of equipment include enamel reaction tanks, filters, replacement tanks, and electrolysis tanks.

These materials and equipment work in tandem to ensure a streamlined and effective recovery process, ultimately yielding high-purity indium with minimal environmental impact.

Analytical Methods

The analytical methods employed in this study are crucial for ensuring the accuracy and reliability of the recovery process. Indium and tin are meticulously analyzed using Inductively Coupled Plasma (ICP) spectrometry, a powerful technique known for its high sensitivity and multi-element detection capabilities. This method allows for the precise quantification of indium and tin concentrations, which are critical parameters in the recovery process.

For the analysis of aluminum, a 721 spectrophotometer is utilized. This instrument is particularly effective for measuring the absorbance of light by aluminum ions, providing a reliable means of determining aluminum content in the samples. The spectrophotometric method is straightforward and relatively quick, making it an ideal choice for routine analysis in industrial settings.

The acidity of the solutions is monitored using a pHS-3C acidimeter. This device is essential for maintaining the pH levels within the optimal range required for the various chemical reactions involved in the recovery process. By ensuring consistent acidity, the efficiency of the dissolution, replacement, and purification steps is significantly enhanced.

These analytical tools collectively provide a comprehensive understanding of the composition and conditions of the materials throughout the recovery process, ensuring that the final product meets the stringent purity requirements for high-purity indium.

Process Flow and Discussion

The article meticulously outlines the sequence of operations involved in the recovery of high-purity indium from ITO target waste, emphasizing the critical steps of acid dissolution, replacement, alkaline fusion, and electrolysis. Each process is characterized by specific conditions and parameters that ensure optimal efficiency and product purity.

Acid Dissolution and Filtration

The initial step involves the dissolution of ITO target waste in hydrochloric acid, a process that liberates indium ions from the solid matrix. This dissolution is typically conducted under controlled temperature and acid concentration to maximize the yield of indium in solution. Following dissolution, filtration is employed to separate the indium-containing solution from the insoluble residue, which may contain other valuable metals such as tin.

Replacement and Purification

Once in solution, indium ions are subjected to a replacement process using zinc powder. This method capitalizes on the greater affinity of zinc for the acid environment, causing it to displace indium from the solution. The resulting product is a sponge-like mass of indium, which is then purified through alkaline melting. This step not only removes residual zinc but also refines the indium to a higher degree of purity.

Electrolytic Refining

The final stage of the process involves electrolytic refining, a technique that further purifies the indium to achieve high purity levels, typically around 99.995%. This process is conducted in specialized electrolysis tanks, where the indium sponge is subjected to an electric current. The electrolytic process ensures that even trace impurities are removed, resulting in a total recovery rate of over 93%.

Each of these steps is meticulously controlled to ensure that the final product meets the stringent purity requirements demanded by industries such as semiconductors and transparent conductive coatings. The detailed discussion of these processes underscores the complexity and precision required for the successful recovery and purification of indium from ITO target waste.

Conclusion and Future Directions

Summary of the Recovery Process

The recovery of high-purity indium from ITO target waste is a multi-step process that begins with the dissolution of the waste material in hydrochloric acid. This initial step is crucial as it liberates the indium from the ITO matrix, allowing for subsequent purification stages. Once dissolved, the indium-containing solution is subjected to filtration to remove any insoluble residues, ensuring a cleaner starting material for the next phase.

Following filtration, the indium in the solution is replaced using zinc powder. This substitution process is essential for converting the indium ions into a solid form, known as sponge indium, which can then be easily separated from the solution. The use of zinc powder not only facilitates the recovery of indium but also helps in reducing impurities, setting the stage for further purification.

The next step in the recovery process is alkaline melting, where the sponge indium is treated with a liquid alkali, typically caustic soda. This process refines the indium further, removing any remaining impurities and converting it into a more stable form. Alkaline melting is a critical step that enhances the purity of the indium, making it suitable for high-demand applications in the electronics industry.

Finally, the crude indium is subjected to electrolytic refining, a technique that achieves the highest level of purity. During this process, the indium is electrolytically refined to reach a purity level of approximately 99.995%, with a total recovery rate exceeding 93%. Electrolytic refining not only ensures the production of high-purity indium but also allows for the recovery of valuable by-products, contributing to the overall efficiency of the process.

Each step in this recovery process is meticulously designed to maximize the yield and purity of indium, making it a sustainable and economically viable method for addressing the growing demand for this rare and valuable metal.

Environmental and Waste Management Considerations

The recovery of indium from ITO target waste is not just a matter of metal extraction; it also involves careful environmental and waste management practices. During the recovery process, significant amounts of tin, zinc, and other elements are also extracted, which necessitates proper handling and recycling to minimize environmental impact.

One of the critical aspects of this process is the treatment of wastewater. The dissolution of ITO targets in hydrochloric acid generates solutions that must be treated to remove harmful chemicals and heavy metals before being discharged. This involves advanced filtration techniques and the use of chemical agents to neutralize and precipitate contaminants. For instance, the use of ion exchange resins can effectively remove indium and other metals from the wastewater, allowing for their subsequent recovery and reuse.

Additionally, the by-products of the electrolytic refining process, such as slag and spent electrolyte, must be managed responsibly. These materials often contain valuable metals that can be recovered through further processing, thereby reducing waste and maximizing resource efficiency. The implementation of closed-loop systems, where wastewater and by-products are recycled within the process, can significantly reduce the environmental footprint of indium recovery operations.

In summary, while the primary focus of indium recovery from ITO target waste is on achieving high-purity metal, the associated environmental and waste management considerations are equally important. Effective management of these aspects ensures that the recovery process is not only economically viable but also environmentally sustainable.
