![적외선 투과 코팅 사파이어 시트 / 사파이어 기판 / 사파이어 창](https://image.kindle-tech.com/images/products/337/c2d368c297df7e8953abd30498bea30d.png)
광학 재료
적외선 투과 코팅 사파이어 시트 / 사파이어 기판 / 사파이어 창
품목 번호 : KTOM-ISS
가격은 다음을 기준으로 달라집니다 specs and customizations
- 제품 틱
- 0.1-10mm
- 반투명 밴드
- 185-5000nm
- 표면 마감
- 60/40(양면 연마)
![ISO & CE icon](https://image.kindle-tech.com/images/settings/88c5b6b35f5516e5b3502703a528d94f.png)
배송:
문의하기 배송 세부 정보를 얻으려면 즐기세요 On-time Dispatch Guarantee.

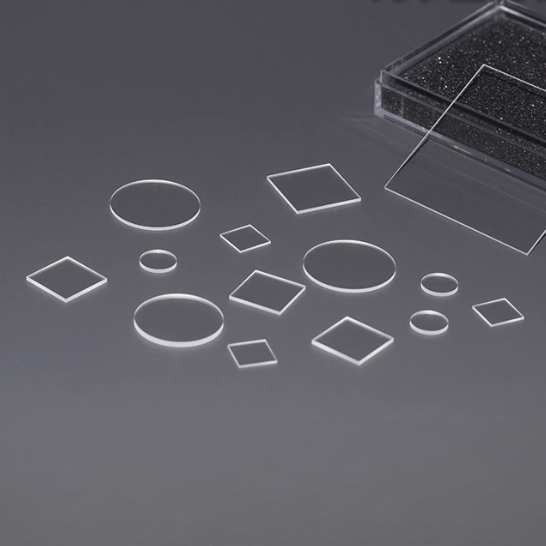

사파이어 기판 설명
사파이어 기판은 자외선(200nm 이상) 또는 적외선(5μm 이하) 범위에서 광학 전송이 필요한 경우 유리 기판 대신 사용하기에 이상적입니다. 저온 광학 측정은 사파이어 기판의 높은 열전도율로 인해 이점을 얻을 수 있으며 최대 2300K의 고온 환경에서도 사용할 수 있습니다.
디테일 & 부품
![부식 방지 사파이어 유리 기판](https://image.kindle-tech.com/images/products/337/83b4314b067a80460e0c327eb402185c.webp)
![고온 내성 사파이어 유리](https://image.kindle-tech.com/images/products/337/b192e3337fad529ad3b29f023c23aaac6492af33f0171.jpg)
![광투과율이 우수한 코팅 사파이어 기판](https://image.kindle-tech.com/images/products/337/b43f7768e22f05b50277b363e62c36ad6492afb69a6dc.jpg)
![고경도 사파이어 기판](https://image.kindle-tech.com/images/products/337/83b4314b067a80460e0c327eb402185c.webp)
![장인정신](https://image.kindle-tech.com/images/products/337/b43f7768e22f05b50277b363e62c36ad6492ae1cc2a9f.jpg)
맞춤형 서비스 제공
우리는 다양한 표준 사파이어 기판 크기를 제공하여 특정 요구 사항을 충족하는 다양한 옵션을 보장합니다. 일반 제품 이외의 고유한 크기 요구 사항이 있는 경우 제공하는 크기를 기반으로 맞춤형 서비스를 제공할 수 있습니다. 이러한 개별 접근 방식을 통해 당사는 귀하의 사양을 정확하게 충족하고 사파이어 기판 요구 사항에 맞는 진정한 맞춤형 솔루션을 제공합니다.
사파이어 유리 특성
- 화학적 특성: 산화알루미늄(Al2O3)의 결정 형태인 사파이어는 불화수소산을 포함한 산 및 알칼리에 대해 뛰어난 내화학성을 나타냅니다. 육각 격자 구조는 Al3+ 양이온과 O2- 음이온으로 구성됩니다.
- 기계적 특성: 다이아몬드 다음으로 모스 경도 9로 사파이어는 긁힘에 매우 강합니다. 이에 비해 유리의 경도는 약 5.5입니다.
- 광학 특성: 사파이어는 복굴절성이지만 C-평면을 따라 정밀하게 절단되어 수직 입사광에 대한 편광 의존성 복굴절성을 제거합니다. 200 nm ~ 5 µm 사이의 파장에 대해 탁월한 투명성을 제공하므로 UV 및 근적외선/중적외선 응용 분야에 이상적입니다. 가시 스펙트럼에서 사파이어의 굴절률은 약 1.76입니다.
- 열 특성: 사파이어는 상온에서 ~40W/mK의 높은 열전도율을 나타내며, 유리보다 거의 50배, 스테인리스강보다 2배 높습니다. 열전도율은 감소된 온도에서 ~10000 W/mK로 증가하여 저온 광학 측정에 매우 적합합니다. 또한 최대 2300K의 고온 환경을 견딜 수 있습니다. 당사의 사파이어 기판은 광학 품질로 연마되어 유리 기판에 비해 RMS 거칠기가 훨씬 낮습니다.
맞춤형 서비스 제공
혁신적이고 최첨단 용융 공정 구현을 통해 우리는 고품질 유리 제품의 개발 및 제조에 대한 광범위한 전문 지식을 습득하여 광범위한 광학 제품을 제공합니다. 다양한 상업, 산업 및 과학 응용 분야를 위한 유리 제품. 원유리, 절단부품, 완제품 등 광학유리의 다양한 규격을 제공하고 있으며, 고객의 요구에 따라 제품을 맞춤 제작하기 위해 고객과 긴밀히 협력하고 있습니다. 품질에 대한 변함없는 약속으로 우리는 고객이 요구 사항에 맞는 완벽한 솔루션을 받을 수 있도록 보장합니다.
추가 견적은 당사에 문의하십시오.
FAQ
광학 유리는 무엇을 위해 사용됩니까?
광학 유리의 구성은 무엇입니까?
가장 일반적인 광학 안경은 무엇입니까?
4.9
out of
5
Astounding! The sapphire sheet's clarity and transmission in the infrared range are beyond compare. It's a game-changer for our optical experiments.
4.7
out of
5
The coating on this sapphire substrate is top-notch. It provides excellent corrosion resistance, making it perfect for our harsh lab environment.
4.8
out of
5
The optical quality of this sapphire window is remarkable. It offers exceptional transmission in the UV and near/mid-IR regions, enabling precise measurements in our spectroscopy setup.
4.6
out of
5
The durability of this sapphire substrate is impressive. It withstands high temperatures and resists scratches, ensuring longevity in our demanding research applications.
4.9
out of
5
The craftsmanship of this sapphire glass is impeccable. The polished surface and low RMS roughness provide exceptional clarity and minimize optical distortion.
4.7
out of
5
The chemical resistance of this sapphire substrate is outstanding. It's impervious to acids and alkalis, making it ideal for our corrosive environment.
4.8
out of
5
The optical properties of this sapphire window are remarkable. The high refractive index and low birefringence ensure accurate and reliable measurements in our optical setups.
4.6
out of
5
The thermal conductivity of this sapphire substrate is exceptional. It efficiently dissipates heat, preventing thermal distortions and ensuring stable performance in our high-power laser applications.
4.9
out of
5
The clarity of this sapphire sheet is breathtaking. It allows for pristine image transmission in our advanced imaging systems.
4.7
out of
5
The scratch resistance of this sapphire substrate is remarkable. It maintains its optical integrity even under harsh conditions, ensuring long-lasting performance in our demanding applications.
4.8
out of
5
The transmission quality of this sapphire window is exceptional. It minimizes signal loss and ensures accurate data acquisition in our spectroscopy experiments.
4.6
out of
5
The high temperature resistance of this sapphire substrate is impressive. It withstands extreme temperatures without compromising its structural integrity, making it ideal for our high-energy laser applications.
4.9
out of
5
The low RMS roughness of this sapphire glass is remarkable. It minimizes surface scattering and ensures pristine image quality in our advanced microscopy setup.
4.7
out of
5
The fast delivery of this sapphire substrate was a lifesaver. It arrived just in time for our crucial experiment, preventing any delays in our research.
4.8
out of
5
The value for money of this sapphire window is unbeatable. Its exceptional optical properties and durability make it worth every penny.
4.6
out of
5
The technological advancement embodied in this sapphire substrate is remarkable. It pushes the boundaries of optical performance and opens up new possibilities for our research.
조회를 요청하다
